4 Way 250Amp RV Marine Red Copper Terminal Stud Busbar For Solar Electric System

Brand Name : TIANRUI

Model Number : TR0823

Certification : ROHS

Place of Origin : China

MOQ : 10

Price : Negotiable

Payment Terms : D/P, T/T,Paypal, Visa, Mastercard

Supply Ability : 1000000PCS/Month

Delivery Time : 5-7 Days

Packaging Details : 1PCS/Bag

Product Name : Copper Terminal Stud Busbar

Single Circuit Rating : 62.5A

Whole Circuit Rating : 250A

Auxiliary Terminal Screw Rating : 20A

Rated Voltage : 48V DC

Material : ABS, Zinc Alloy, Copper

Stud : M8 M10

Net Weight : 248G

Gross Weight : 250G

Packing : PE Bag, 18x4x5cm

Contact Now

Heavy Duty 4 Way 250 Amp RV Marine Red Copper Terminal Stud Busbar for Solar Electric System with Cover

Tianrui offers busbars in various sizes to cover all your needs. The busbars are built to last and comes with insulation covers. They are high quality power distribution blocks and allow for multiple connections to positive and negative systems. Each block can maintain multiple connections, making them flexible and robust for a variety of uses.
Nickle plated brass plate for low resistance, maximum conductivity and protect against corrosion.
Made from robust Polycarbonate plastic for excellent strength and durability in even the harshest of environments.
Gives a neat and clean finish to any installation in your boat, car or caravan.


Specification of Heavy Duty 4 Way 250 Amp RV Marine Red Copper Terminal Stud Busbar

Item
4 Stud Power Distribution Block Tinned Copper Bus Bar
Part NO
TR0823
Number of Contacts
4
Conductor Size
12`28AWG
Terminal Studs
M8 (5/16")/M10(3/8")
Max Voltage
300V AC, 48V DC
Max Continuous Amperage
130A AC,1 50A DC
Material
Nylon Plastic Base + Stainless Steel Terminals
Color
Red/Black
Size
7.48 x 3.58 x 2.17 inches
Usage
Distribution Line suitable for automotive, car, truck, marine, boat, yacht, etc.


Features of Heavy Duty 4 Way 250 Amp RV Marine Red Copper Terminal Stud Busbar

* HIGH QUALITY: Nickel-plated brass contact plates for optimal current transfer and weather resistance, strong and
rust-resistant. The base and housing of this battery distribution block are made of fiberglass reinforced nylon for excellent insulation and durability.
* FUNTION: The bus bar is used to consolidate multiple wires or feed multiple circuits. The power distribution blocks can be used to customize vehicles or relocate batteries, and give a neat and clean finish to any installation in your boat, car or caravan.
* EASY INSTALLATION: Surface screw mounting, two mounting holes make this 4 stud power distribution block easier to install in any orientation.
* WIDE APPLICATIONS: 4 stainless steel 5/16" studs make this bus bar widely used in power supply systems of 12-48V car, truck, RV, yacht, boats, marine.
* SPECIFICATIONS: Max Amperage: 250 Amps @ 12V DC, Max Voltage: 48V DC

Application of Heavy Duty 4 Way 250 Amp RV Marine Red Copper Terminal Stud Busbar

Widely used in cars, pickup trucks, trailers, RVs, motorcycles, recreational vehicles, trucks, vans, caravans, yachts, ships, etc. Multi-position single row busbars provide a neat and clean surface for any installation on your boat or car and are perfect for all your electrical wiring projects. Easy to install, use M4 screws to fix it

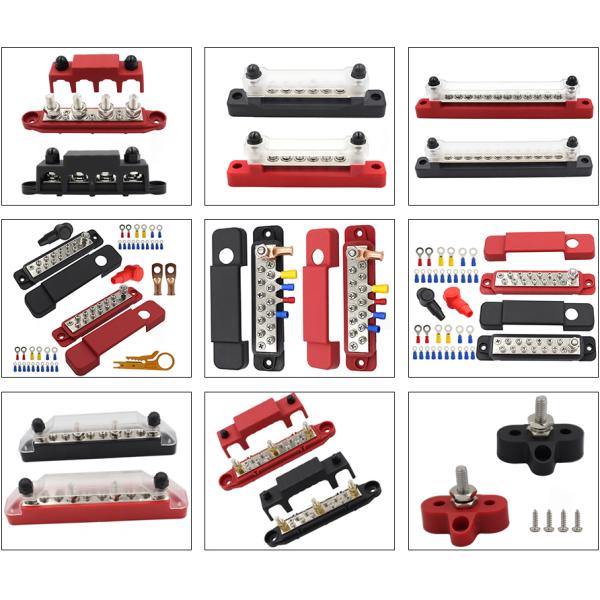

4 Way 250Amp RV Marine Red Copper Terminal Stud Busbar For Solar Electric System

4 Way 250Amp RV Marine Red Copper Terminal Stud Busbar For Solar Electric System

4 Way 250Amp RV Marine Red Copper Terminal Stud Busbar For Solar Electric System

4 Way 250Amp RV Marine Red Copper Terminal Stud Busbar For Solar Electric System
