6 Way ATY ATO ATC Blade Fuses Holders Car Automotive Fuse Block with Negative Bus Bar
| Product name | 2 in 6 out positive and negative fuse holder |
| Gross weight | 345g (including fuse box +4 tapping screws + label stickers + transparent PE bag + white box) |
| Package size | 15x10x8.2cm |
| Rated voltage | 60V |
| Rated current | 200A |
| Output current | the maximum output current is 40A |
| Material | PBT body +PC dustproof and waterproof cover + nickel-plated copper terminal |
| Main line | M5 threaded studs, fit diameter: # 4-6AWG |
| Single thread | M4 threaded stud, fit wire diameter: # 12-16AWG |
Fuse Function of 6 Way ATY ATO ATC Blade Fuses Holders Car Automotive Fuse Block
When the circuit fails or abnormalities, the current is accompanied by the continuous increase of the current and the elevated current may damage some important devices or valuable devices in the circuit, which may also burn the circuit or even cause fire. The fuse protection electronic equipment is not damaged by current, and it can also avoid serious damage caused by electronic equipment due to internal faults. Therefore, there are rated specifications on each fuse, and the fuse will be melted when the current exceeds the rated specifications. If the fuse is placed correctly in the circuit, then when the fuse will increase to a certain height and a certain temperature at a certain height and a certain temperature, the fuse will be cut off and cuts the current, thereby protecting the safe operation of the circuit.
Application of 6 Way ATY ATO ATC Blade Fuses Holders Car Automotive Fuse Block
This fuse holder can be directly connected to the line on the car/boat.
[For example: roof light, car headlights, width lamps, fog lights, warning lights, car refrigerators, vehicle chargers, car fan, car TV, etc.]
Features of 6 Way Fuse distribution block Car Boat Fuse Box Holder

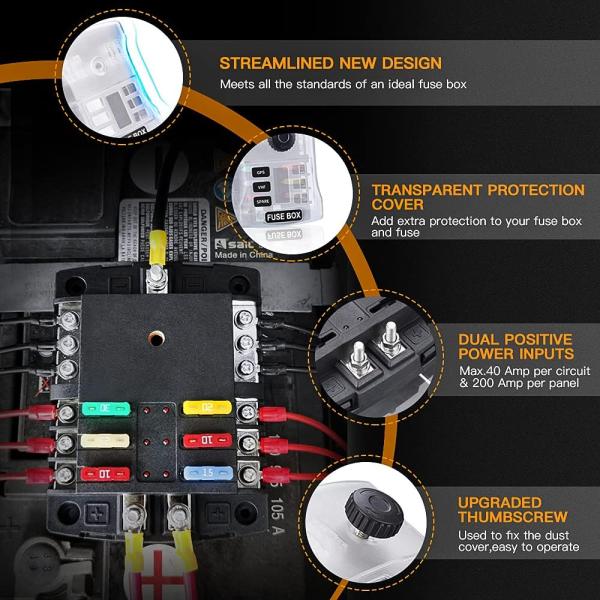

•NEW DESIGN 6 WAY FUSE BOX: 6-Way Blade Fuse Block accepts standard ATC/ATO(middle size) fuses. 6 Circuits with Dual Positive Power Inputs and the Negative Bus to make your circuit clear at a glance. This device is intended for branch circuit protection and has good conductivity. Max. 60V DC operating voltage. Max. 40 Amp per circuit & 200 Amp per panel.
•LED WARNING INDICATOR & SAFE MATERIAL: Red LED warning light will light up immediately when the corresponding fuse is blown. It is both safe and easy for you to check and replace the blown fuse. Made of environment friendly PBT material, this fuse holder meets all the standards of an ideal fuse box. It is mechanically strong, insulated, heat resistant and flame resistant.

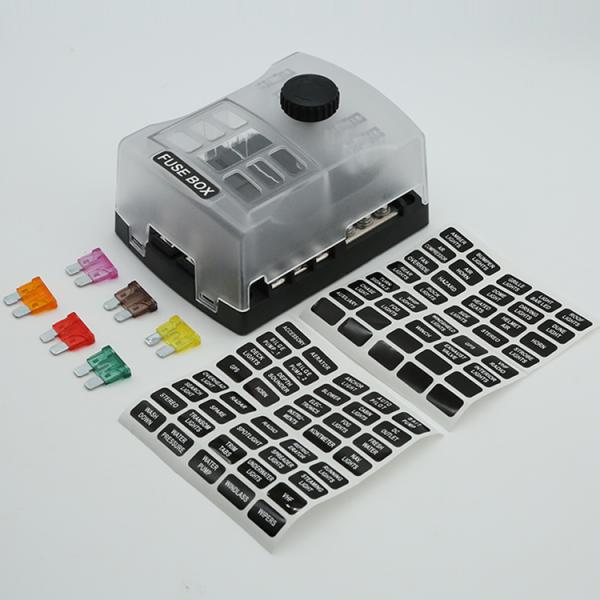

•PROTECTION COVER & SPARE FUSE SLOTS: Transparent plastic cover with screw nut, easy to operate, splash and dust-proof design. Adds extra protection to your fuse box & fuses. Come with multi-function stickers for DIY your specific need, convenient for examination and repair, easy to troubleshoot in outdoor. Spare fuse slots design, convenient for the storage of spare fuses.
•WIDE APPICATION: This 6 Circuit Fuse Block widely used in Car, Truck, Boat, Tankers, Marine, SUV, Yacht, RV, Van, Ships etc. Each fuse of fuses box can be connected to any circuit of electrical appliances. For example: car dome light, auto headlight, width lamp, fog lamp, warning lights, car refrigerator, car charger and car fan, car TV.etc.
